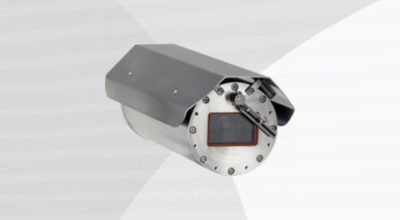

ExCam XF Q1785 is certified to international standards to ensure safe operation in explosion prone applications. With built-in PoE support, a pre-connected 5 metre armored cable, and an Ex e junction box, the ExCam XF Q1785 is easy to install and use, and makes it simple to locate and repair any problems that might arise.
ExCam XF Q1785 is designed for 24/7 long-range surveillance and provides high resolution footage even under extreme lighting conditions. The camera’s 32x optical zoom, in combination with HDTV 1080p resolution, delivers superb zoomed-in views of people and objects of interest. This allows you to install the camera far away from the object and still capture all the details.
Customers in New Zealand call 0800 345 677 or email [email protected].
wdt_ID
Feature
Description
1
Maximum Frame Rate
With WDR: Up to 25/30 fps (50/60 Hz) Without WDR: Up to 50/60 fps (50/60 Hz) All in 1920x1080 HDTV 1080p (16:9) to 160x120 (4:3)
2
Compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
3
Video Streaming
Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264
4
Minimum Illumination
Color: 0.16 lux at 50 IRE F1.4 B/W: 0.03 lux at 50 IRE F1.4
5
Security
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management, brute force delay protection
6
Storage
Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see www.axis.com
7
Casing
IP68-rated, ASTM 316L (EN 1.4404) stainless steel casing for maximum corrosion protection
8
Zoom
Maximum pixel density with 32x optical zoom: 25 m (82 ft): 1912 px/m 50 m (164 ft): 956 px/m 250 m (820 ft): 191 px/m
9
Operating Conditions
-60 °C to 60 °C (-76 °F to 140 °F) Maximum temperature (intermittent): 75 °C (167 °F) Humidity 10-100% RH (condensing)
